Instrumentation features:
1. Maintenance-free brushless motor drive, low noise, small temperature rise, safety and reliability and other advantages.
2. Digital display: speed, time, speed gear, rotor number; and with "RCF" key can switch centrifugal force.
3. Equipped with buffer automatic electronic door lock, unbalanced complementary, overspeed, unbalanced, and other fault display, to ensure the safety of man and machine.
4. Thicker aluminum alloy rotor body, which can be disinfected at high temperature, strong and durable.
5. It can be widely used in clinical science, biochemistry, food and environmental protection and other fields, and is a conventional instrument used for centrifugal precipitation in the laboratory.
Company Name :
Hunan Anjunyan Instruments Co., Ltd.Brand :
ANJUNYANHunan Anjunyan Instrument Co., Ltd. is a collection of design, research and development production, sales and sales, after the service as one of the professional high-tech manufacturing enterprises.
Anjunyan main products for centrifuge and other special instruments and equipment, using domestic, high technology, continuous introduction of high-end people, only, continuous development and innovation, has passed the international CE product certification and ISO9001:2015 quality management system certification, for domestic and foreign university institute, biological products, food hygiene, pharmaceutical companies, industry, blood stations, medical institutions and other fields provide high quality products.
Company concept: safety with you, fine drill fine research.
Company vision: to create business value to meet customers' expectations and
become an excellent enterprise in the centrifuge industry.
Company values: customer-centered, hard work, sustainable learning, and continuous innovation.

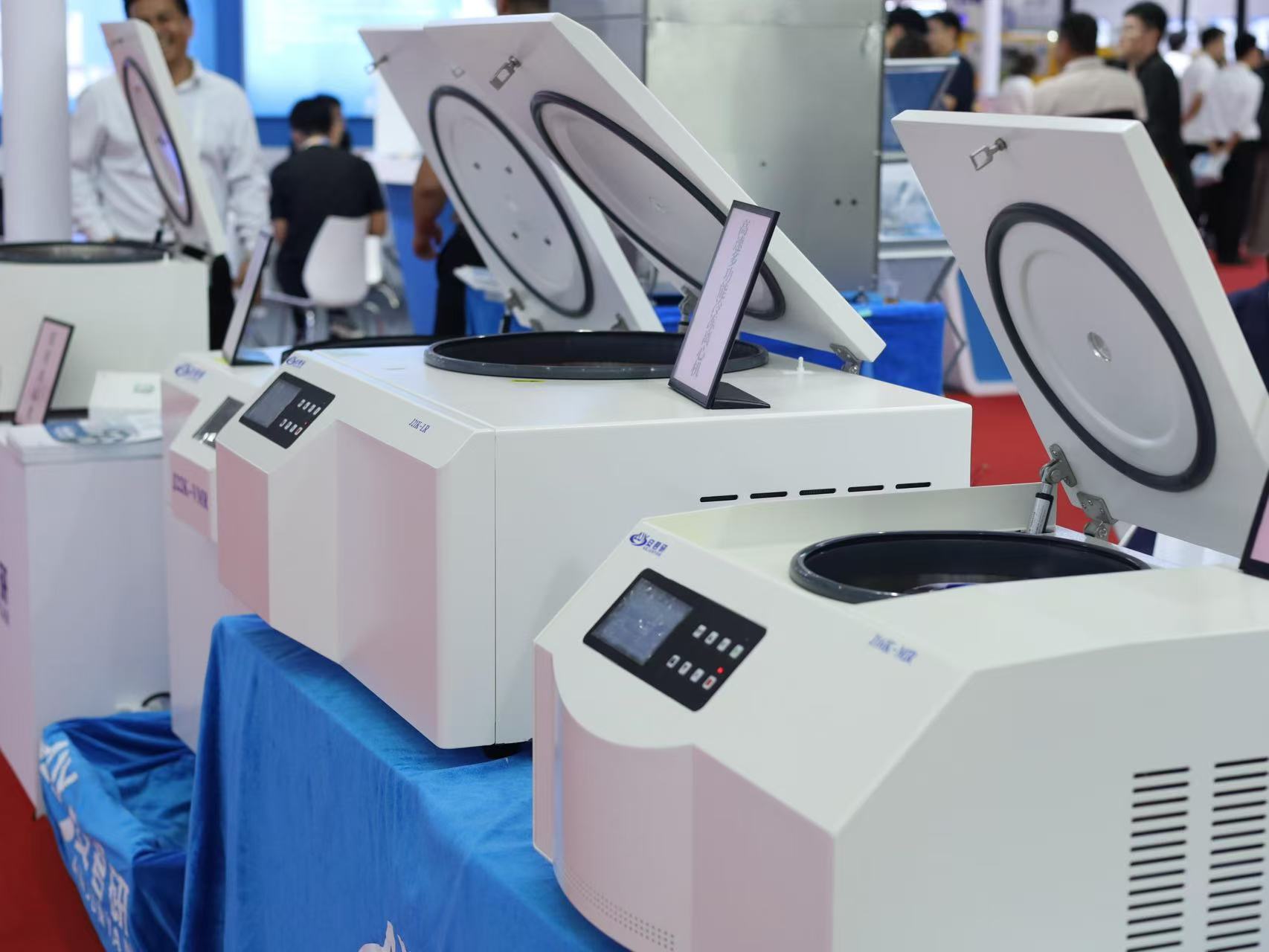

①Vertical ultra-high-speed refrigerated centrifuge
It is widely used in pharmaceutical factories, biochemistry, biological products and other production and scientific research units Perform experiments such as protein precipitation and cell isolation and collection in large quantities.
②High-speed refrigerated centrifuge
It is applicable to the separation of molecular biology, blood components, cellular components, and protein purification, and is widely utilized in fields such as clinical medicine, life sciences, bioengineering, biochemistry, medical research, agriculture, and biopharmaceuticals.
③Low-speed refrigerated centrifuge
It is applicable for the separation of blood components, nucleic acid extraction, and cellular component separation, and is widely used in clinical testing, life sciences, bioengineering, biochemistry, medical research, agriculture, biopharmaceuticals, and food industries.
④Low-speed centrifuge
It is applicable for the separation of blood components, nucleic acid extraction, and cellular component separation, and is widely used in clinical testing, life sciences, bioengineering, biochemistry, medical research, agriculture, biopharmaceuticals, and food industries.
technical parameter:
1. Maximum speed: 4,000r/min
2. Maximum centrifugal force: 2,680×g
3. Maximum capacity: 4×100 ml
4. Speed accuracy: ± 20r/min
5. Timing range: 0-99min
6. Complete machine noise: 58dB (A)
7. Power supply: Ac220V 50Hz 10A/150W
8. Net weight: 18KG
9. Overall dimensions: 460mm×330mm×270mm (L×W×H)
Adaptive rotor:
|
Rotor number |
name |
Rotor capacity |
maximum speed |
Maximum relative centrifugal force |
Centrifuge tube size (mm) |
|
01 |
Angle rotor (aluminum) |
12×15ml/10ml/5ml (stainless steel sleeve) |
4000r/min |
2680×g |
φ16×100-120 |
|
0101 |
adapter |
12×5ml (blood collection vessel) |
4000r/min |
2680×g |
φ13×100 |
|
0102 |
adapter |
12×2ml (blood collection vessel) |
4000r/min |
2680×g |
φ13×75 |
|
0103 |
adapter |
12×1.5ml/2.2ml |
4000r/min |
2680×g |
φ10×42 |
|
02 |
Angle rotor (aluminum) |
12×10ml / 5ml (plastic pipe sleeve) |
4000r/min |
2680×g |
φ15.5×100 |
|
0101 |
Fish tail mat |
12×2ml (blood collection vessel) |
4000r/min |
2680×g |
φ13×75 |
|
0102 |
adapter |
12×1.5ml/2.2ml |
4000r/min |
2680×g |
φ10×42 |
|
03 |
Angle rotor (aluminum) |
12×20ml (plastic tube sleeve) |
4000r/min |
2680×g |
Φ23×101 |
|
04 |
Angle rotor (aluminum) |
18×10/5ml (plastic tube sleeve) |
4000r/min |
2680×g |
φ15.5×100 |
|
0401 |
Fish tail mat |
18×2ml (blood collection vessel) |
4000r/min |
2680×g |
φ13×75 |
|
0402 |
adapter |
18×1.5ml/2.2ml |
4000r/min |
2680×g |
φ10×42 |
|
05 |
Angle rotor (aluminum) |
24×10/5ml (plastic pipe sleeve) |
4000r/min |
2680×g |
φ15.5×100 |
|
0501 |
Fish tail mat |
24×2ml (blood collection vessel) |
4000r/min |
2680×g |
φ13×75 |
|
0502 |
adapter |
24×1.5ml/2.2ml |
4000r/min |
2680×g |
φ10×42 |
|
06 |
Angle rotor (aluminum) |
6×50ml |
4000r/min |
2680×g |
φ29×106-107 |
|
0601 |
adapter |
6×15/10ml |
4000r/min |
2680×g |
φ16×100-120 |
|
0602 |
adapter |
6×5ml (blood collection vessel) |
4000r/min |
2680×g |
φ13×100 |
|
0603 |
adapter |
6×2ml (blood collection vessel) |
4000r/min |
2680×g |
φ13×75 |
|
07 |
Angle rotor (aluminum) |
4×100ml |
4000r/min |
2680×g |
φ38×113-118 |
|
0701 |
adapter |
4×50ml |
4000r/min |
2680×g |
φ29×106-107 |
